Product Description

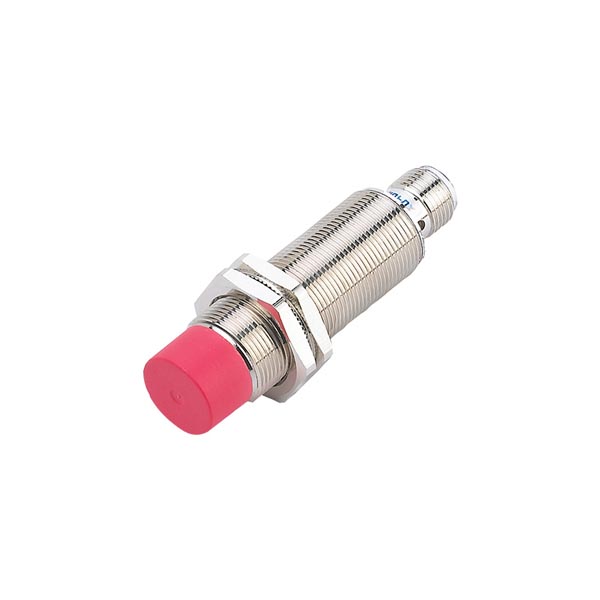

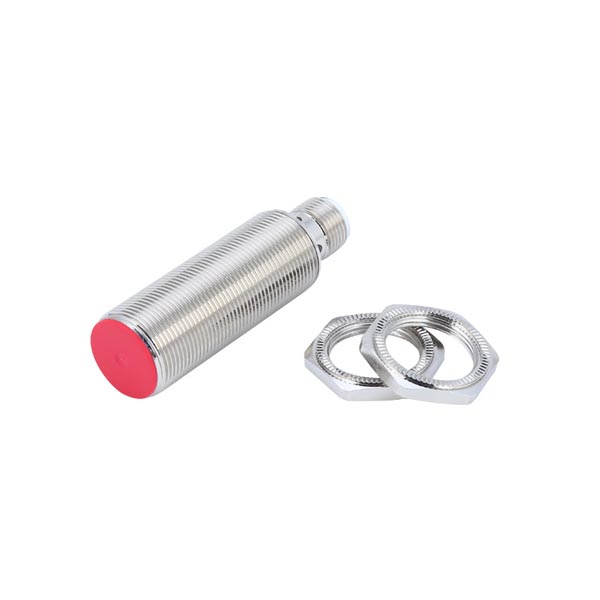

M18 Connector type Cylinder DC Inductive proximity sensor

◆ Product features

  • With overload and short circuit, reverse connection protection, surge absorption With waterproof, anti oil, temperature and other advantages
  • Yellow LED display can detect sensor work status
  • IP67 protection structure (IEC specification)
  • Before use, please read the product specification

◆ Model specification

◆ Output mode and electrical characteristics
DC two-wire system NO or NC
The load must be connected in series in the sensor to work, there is a polarity and short circuit protection
function; in the open circuit state, there is a very small leakage current; in the closed circuit, the switching element has a smaller voltage drop

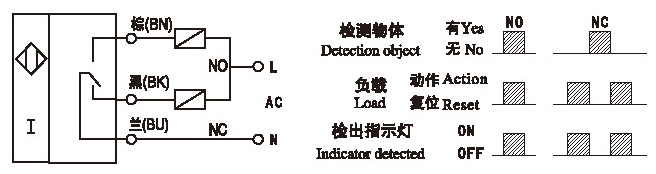

AC two-wire system NO or NC
The load must be connected in series in the sensor, in the closed circuit, the switching element has a smaller voltage drop.

DC three-wire system(N,P type) NO or NC
These switches are connected to the load and power supply separately; the polarity, short circuit and overload protection function, and the residual current can be ignored.

AC three-wire system NO+NC
The switches can provide two groups of output NO and NC

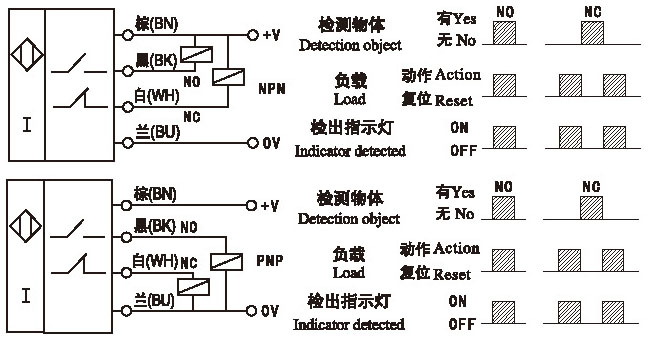

DC four-wire system(N,P type)NO plus NC
The switches can provide two groups of output NO and NC

AC/DC five wire(relay output)NO+NC
These switches can provide to often open,closed two group relay output.
