Product Description

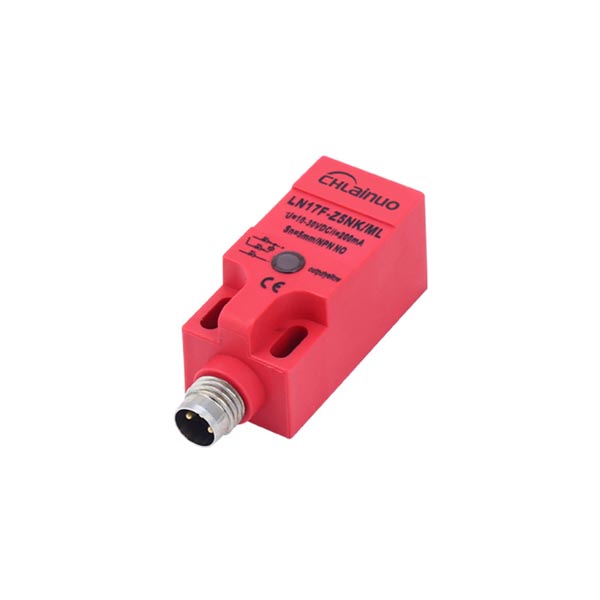

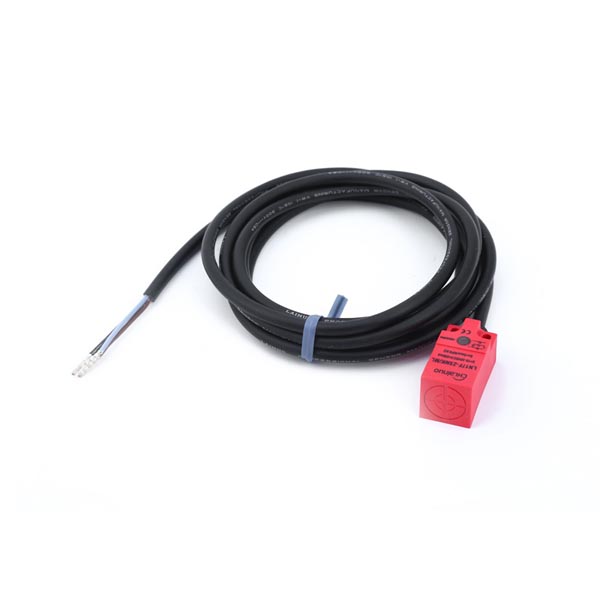

17*17 Square semi-pluggable type proximity sensor

◆ Product features

  • With overload and short circuit, reverse connection protection,surge absorption
  • With waterproof, anti oil, temperature and other advantages
  • Yellow LED display can detect sensor work status
  • IP67 protection structure (IEC specification)
  • Before use, please read the product specification

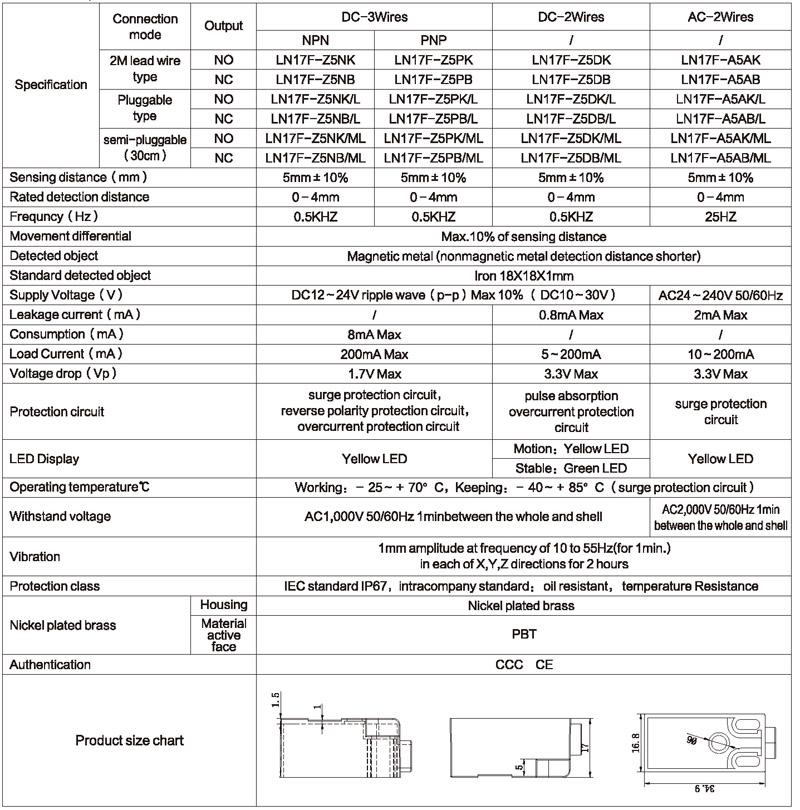

◆ Model specification

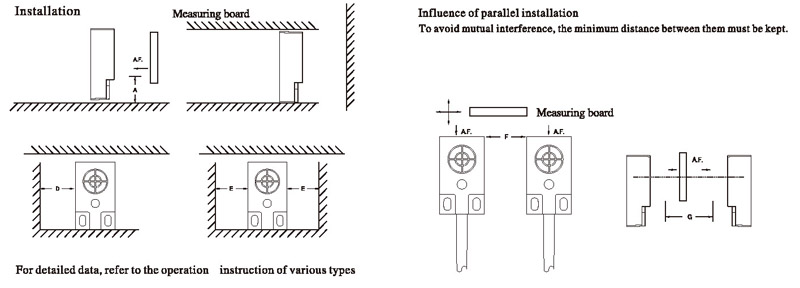

• installation conditions

Output mode and electrical characteristics

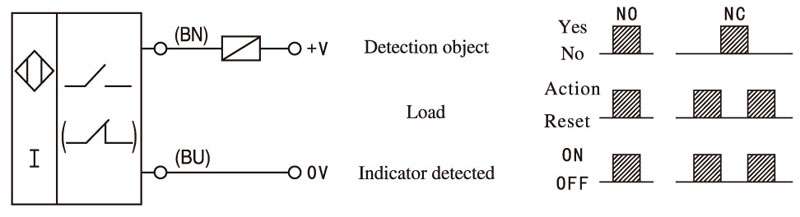

DC two-wire system NO or NC
The load must be connected in series in the sensor to work, there is a polarity and short circuit protection function; in the open circuit state, there is a very small leakage current; in the closed circuit, the switching element has a smaller voltage drop.

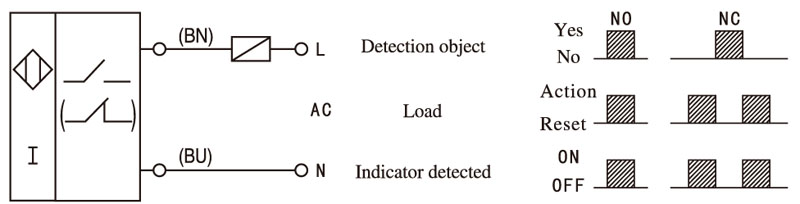

AC two-wire system NO or NC
The load must be connected in series in the sensor, in the closed circuit, the switching element has a smaller voltage drop.

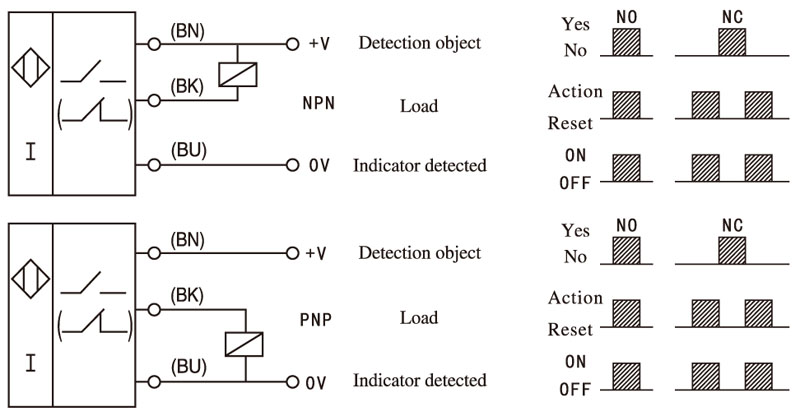

DC three-wire system(N,P type) NO or NC
These switches are connected to the load and power supply separately; the polarity, short circuit and overload protection function, and the residual current can be ignored.
